DATASHEET (draft)

Product Synopsis

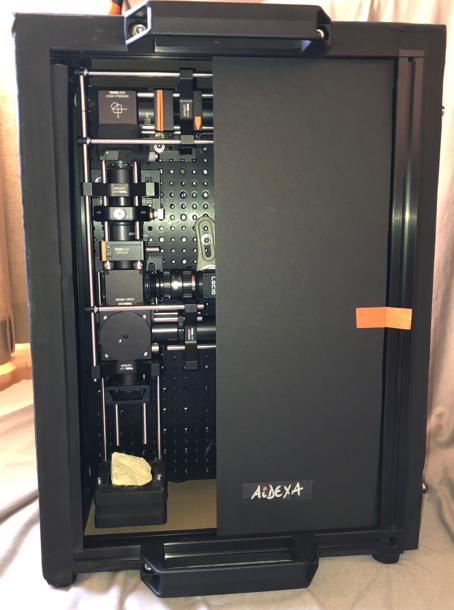

eRPHiX is an experimental mobile field lab instrumentation platform capable of fast hyperspectral imaging of the plasmonic effect of Raman active organic composites in enhancing colloidal liquids or nano-substrates.

The platform is intended to facilitate the verification of sensitivity and reproducibility of SERS-substrates and the development of novel solutions.

It addresses a need of research labs and nanomaterials manufacturers.

.

Main Features

The present functional prototype enables the detection and dynamic hyperspectral
imaging of Raman spectra in:
·        solids, powders and liquids at a min. 10% concentration and
·        surface enhanced plasmonic Raman spectra of low concentration of organic volatiles in droplets of colloidal solutions on glass slides or solid nano-substrates

The unit has a GigE interface and can be easily connected to state-of-the-art hyperspectral imaging software packages for further data evaluation and modelling.

.

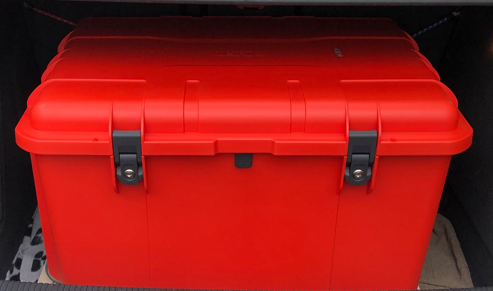

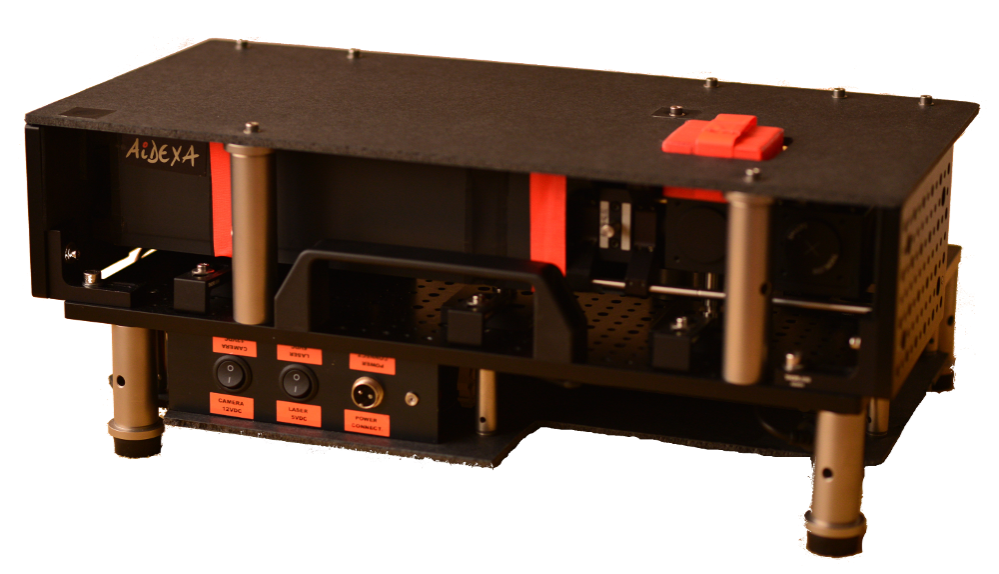

 It comes in a robust transportation case, is fast to build up and versatile in use, either in horizontal or vertical standing; SERS droplets are scanned in the present version on a microscope slide in vertical standing only. Customized adaptations are easy to implement.

Specification

Weight: 20 kg with case / 12kg w/o
Dimensions: 60 x 44 x 26 cm w. case /
45 x 30 x 20 cm w/o case
Power supply:
100 - 230 Vac / 1 Amp
Operating temperature:
0 - 50 ° C

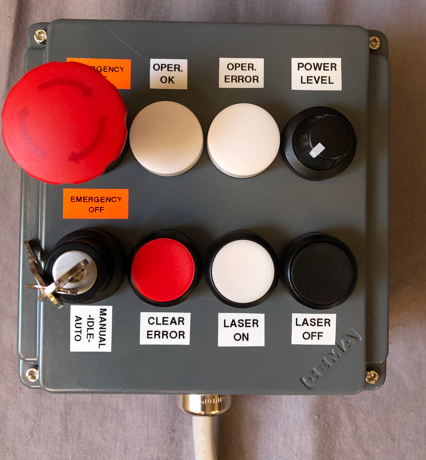

Laser :
532nm +/- 0.1nm |
FWHM max. 1pm, TEM0O
max. 50mW, optical and electronic (USB interface) adjustment available
Spectrograph:
Transmissive, 15u slit, holographic grating
Spectral range:
Raman 300 – 3600 cm-1 /
960 spectral pixel resolution
Spectral resolution:
8 – 10 cm-1 (0.25 - 0.5nm)
Line of Detection:
150 spatial pixel on 1.5mm scanning line;
customizable optics possible
Detector:
Ultra-low light | 1000 spectral x 150 spatial pixels;
nominal 10 fps @ ca. 100ms exposure
Data interface:
GigE
Production:
Austria
Recommended list price:
30.000,-    EURO,  net

Examples of recorded Raman spectra with eRPHiX

  Raman spectral wavenumbers from right to left 0 - 3600 cm-1 and 1000 spectral pixels width

Solid Polymers, transparent PE

Solid Polymers, transparent PS

Liquids, acetone 90%

Liquids, ethanol 63%

Powders, paracetamol 99%

SERS spectra of 10-8M R6G in AuNP colloid

Visualization of plasmonic surface enhancement in colloidal droplet

Vertical section line of 1.5mm through colloidal droplet of 10-8M R6G in AuNP placed on aluminum foil covered glass slide and scanned with 10 fps (time is on the horizontal axis). Green visualizes spot of increased fluorescence; orange are hyperspectral pixels with SERS spectra of R6G.

eRPHiX Datasheet   ...    Link

DISCLAIMER: INTELLECTUAL PROPERTY RIGHTS ARE RESERVED BY AiDEXA GmbH. ALL PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION, DESIGN OR OTHERWISE. AiDEXA GmbH DISCLAIMS ANY AND ALL LIABILITY FOR ANY ERRORS, INACCURACIES OR INCOMPLETENESS CONTAINED IN ANY DATASHEET OR IN ANY DISCLOSURE RELATED TO ITS PRODUCTS. AiDEXA GmbH APPRECIATES ANY FEEDBACK AND CORRECTIONS.
